一、源码引入

前两篇从应用分析到了库，本篇到内核中看看，futex到底何方神圣？（Linux3.1.1） 先看一下futex.c和futex.h（kennel/futex.c linux/futex.h）:

/** * struct futex_q - The hashed futex queue entry, one per waiting task * @list:		priority-sorted list of tasks waiting on this futex * @task:		the task waiting on the futex * @lock_ptr:		the hash bucket lock * @key:		the key the futex is hashed on * @pi_state:		optional priority inheritance state * @rt_waiter:		rt_waiter storage for use with requeue_pi * @requeue_pi_key:	the requeue_pi target futex key * @bitset:		bitset for the optional bitmasked wakeup * * We use this hashed waitqueue, instead of a normal wait_queue_t, so * we can wake only the relevant ones (hashed queues may be shared). * * A futex_q has a woken state, just like tasks have TASK_RUNNING. * It is considered woken when plist_node_empty(&q->list) || q->lock_ptr == 0. * The order of wakeup is always to make the first condition true, then * the second. * * PI futexes are typically woken before they are removed from the hash list via * the rt_mutex code. See unqueue_me_pi(). */struct futex_q {	struct plist_node list; //内核中的链表节点，用于将数据进行管理	struct task_struct \*task;//futex相关联的指针队列-线程或者进程	spinlock_t \*lock_ptr;//自旋锁指针	union futex_key key;//查找futex的key	struct futex_pi_state \*pi_state;  //控制优先级继承	struct rt_mutex_waiter \*rt_waiter;	union futex_key \*requeue_pi_key;	u32 bitset; //常用的掩码匹配};

英文注释写得非常清楚，画蛇添足，又增加了中文注释。

/* * Priority Inheritance state: */struct futex_pi_state {	/*	 * list of 'owned' pi_state instances - these have to be	 * cleaned up in do_exit() if the task exits prematurely:	 */	struct list_head list;	/*	 * The PI object:	 \*/	struct rt_mutex pi_mutex;	struct task_struct \*owner;	atomic_t refcount;	union futex_key key;};//key是一个共用体union futex_key {	struct {		unsigned long pgoff;		struct inode \*inode;		int offset;	} shared;//futex地址结构体--不同进程间区别用	struct {		unsigned long address;		struct mm_struct \*mm;		int offset;	} private;//地址结构体--同一进程间区别	struct {		unsigned long word;		void \*ptr;		int offset;	} both;//共用结构体};

它们在使用时上面结构体中的相关task会被挂载到一个哈希桶中：

/* * Hash buckets are shared by all the futex_keys that hash to the same * location.  Each key may have multiple futex_q structures, one for each task * waiting on a futex. */struct futex_hash_bucket {	spinlock_t lock;	struct plist_head chain;};static struct futex_hash_bucket futex_queues[1<

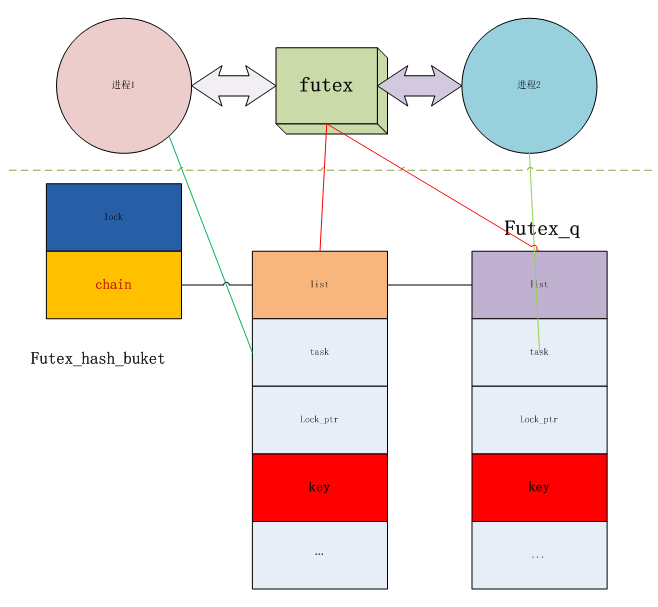

区别它们的办法就是通过上面的key来查找相关的futex的。看一下相关的futex进程应用模型：

futex的应用是要有一个init函数的：

static int __init futex_init(void){	u32 curval;	int i;	/*	 * This will fail and we want it. Some arch implementations do	 * runtime detection of the futex_atomic_cmpxchg_inatomic()	 * functionality. We want to know that before we call in any	 * of the complex code paths. Also we want to prevent	 * registration of robust lists in that case. NULL is	 * guaranteed to fault and we get -EFAULT on functional	 * implementation, the non-functional ones will return	 * -ENOSYS.	 \*/	if (cmpxchg_futex_value_locked(&curval, NULL, 0, 0) == -EFAULT)		futex_cmpxchg_enabled = 1;	for (i = 0; i < ARRAY_SIZE(futex_queues); i++) {		plist_head_init(&futex_queues[i].chain);		spin_lock_init(&futex_queues[i].lock);	}	return 0;}

在前面的第二篇glibc的分析中提到了三种futex,在这里都可以找到，主要说明pi-futex： pi-futex,也就是Priority Inheritance，优先级继承，如果学习过操作系统原理的一定知道“优先级反转”这个名词，它就是用来解决优先级反转的一种办法。 看一下相关的代码，这里不全列出，如有兴趣可参看内核的代码：

static int wake_futex_pi(u32 \__user *uaddr, u32 uval, struct futex_q *this){	struct task_struct *new_owner;	struct futex_pi_state *pi_state = this->pi_state;	u32 curval, newval;	if (!pi_state)		return -EINVAL;	/*	 * If current does not own the pi_state then the futex is	 * inconsistent and user space fiddled with the futex value.	 */	if (pi_state->owner != current)		return -EINVAL;	raw_spin_lock(&pi_state->pi_mutex.wait_lock);	new_owner = rt_mutex_next_owner(&pi_state->pi_mutex);	/*	 * It is possible that the next waiter (the one that brought	 * this owner to the kernel) timed out and is no longer	 * waiting on the lock.	 */	if (!new_owner)		new_owner = this->task;	/*	 * We pass it to the next owner. (The WAITERS bit is always	 * kept enabled while there is PI state around. We must also	 * preserve the owner died bit.)	 */	if (!(uval & FUTEX_OWNER_DIED)) {		int ret = 0;		newval = FUTEX_WAITERS | task_pid_vnr(new_owner);		if (cmpxchg_futex_value_locked(&curval, uaddr, uval, newval))			ret = -EFAULT;		else if (curval != uval)			ret = -EINVAL;		if (ret) {			raw_spin_unlock(&pi_state->pi_mutex.wait_lock);			return ret;		}	}	raw_spin_lock_irq(&pi_state->owner->pi_lock);	WARN_ON(list_empty(&pi_state->list));	list_del_init(&pi_state->list);	raw_spin_unlock_irq(&pi_state->owner->pi_lock);	raw_spin_lock_irq(&new_owner->pi_lock);	WARN_ON(!list_empty(&pi_state->list));	list_add(&pi_state->list, &new_owner->pi_state_list);	pi_state->owner = new_owner;	raw_spin_unlock_irq(&new_owner->pi_lock);	raw_spin_unlock(&pi_state->pi_mutex.wait_lock);	rt_mutex_unlock(&pi_state->pi_mutex);	return 0;}static int unlock_futex_pi(u32 __user *uaddr, u32 uval){	u32 oldval;	/*	 * There is no waiter, so we unlock the futex. The owner died	 * bit has not to be preserved here. We are the owner:	 */	if (cmpxchg_futex_value_locked(&oldval, uaddr, uval, 0))		return -EFAULT;	if (oldval != uval)		return -EAGAIN;	return 0;}/** * requeue_pi_wake_futex() - Wake a task that acquired the lock during requeue * @q:		the futex_q * @key:	the key of the requeue target futex * @hb:		the hash_bucket of the requeue target futex * * During futex_requeue, with requeue_pi=1, it is possible to acquire the * target futex if it is uncontended or via a lock steal.  Set the futex_q key * to the requeue target futex so the waiter can detect the wakeup on the right * futex, but remove it from the hb and NULL the rt_waiter so it can detect * atomic lock acquisition.  Set the q->lock_ptr to the requeue target hb->lock * to protect access to the pi_state to fixup the owner later.  Must be called * with both q->lock_ptr and hb->lock held. \*/static inlinevoid requeue_pi_wake_futex(struct futex_q \*q, union futex_key \*key,			   struct futex_hash_bucket \*hb){	get_futex_key_refs(key);	q->key = \*key;	__unqueue_futex(q);	WARN_ON(!q->rt_waiter);	q->rt_waiter = NULL;	q->lock_ptr = &hb->lock;	wake_up_state(q->task, TASK_NORMAL);}

从这里可以看出，内核针对不同的场景，设计了三种不同的futex，而上面的pi-futex正是用来处理优先级反转的一种，优先级反转是一种进程调用现象，在进程（线程）管理中，低优先级的进程（线程）掌握了高优先级的进程的同步资源，那么就需要处理一下优先级来达到尽快让高优先级的进程（线程）执行，解决优先级翻转问题有优先级天花板(priority ceiling)和优先级继承(priority inheritance)两种办法。内核中使用的是后者，即临时把低优先级的进程提高优先级，参与高优先级的共同执行，待释放资源后再将其降低到原来的优先级。 这里需要重点提一下requeue这个功能，这是为了更好的支持pthread_cond的broad_cast,用过条件变量的同学们可能都知道，这玩意儿一般会和一个mutex共同来使用，保证线程操作的顺序（底层通过cond和mutex的从属关系来达到），即它包含了两次等待，或两个队列等待。一个是cond信号的等待（队列），另一个是它所属的mutex锁的等待（队列）。这使得一次cond wait必须先释放mutex，然后依次等待cond信号和mutex。那这样的结果就是会造成两次的等待和唤醒，可是在广播唤醒时，只需唤醒一个线程就可以了，不需要惊醒所有的线程来竞争。所以这个requeue就是用来优化这部分的。其实就是将两个等待的唤醒队列优化成一次。 所以说，不读内核源码，你对线程的理解总是浮在上面的，无法掌握其本质。

二、调用方式

看一下对外的接口：

SYSCALL_DEFINE6(futex, u32 __user *, uaddr, int, op, u32, val,		struct timespec __user *, utime, u32 __user *, uaddr2,		u32, val3){	struct timespec ts;	ktime_t t, *tp = NULL;	u32 val2 = 0;	int cmd = op & FUTEX_CMD_MASK;	if (utime && (cmd == FUTEX_WAIT || cmd == FUTEX_LOCK_PI ||		      cmd == FUTEX_WAIT_BITSET ||		      cmd == FUTEX_WAIT_REQUEUE_PI)) {		if (copy_from_user(&ts, utime, sizeof(ts)) != 0)			return -EFAULT;		if (!timespec_valid(&ts))			return -EINVAL;		t = timespec_to_ktime(ts);		if (cmd == FUTEX_WAIT)			t = ktime_add_safe(ktime_get(), t);		tp = &t;	}	/*	 * requeue parameter in 'utime' if cmd == FUTEX_*_REQUEUE_*.	 * number of waiters to wake in 'utime' if cmd == FUTEX_WAKE_OP.	 */	if (cmd == FUTEX_REQUEUE || cmd == FUTEX_CMP_REQUEUE ||	    cmd == FUTEX_CMP_REQUEUE_PI || cmd == FUTEX_WAKE_OP)		val2 = (u32) (unsigned long) utime;	return do_futex(uaddr, op, val, tp, uaddr2, val2, val3);}long do_futex(u32 __user *uaddr, int op, u32 val, ktime_t *timeout,		u32 __user *uaddr2, u32 val2, u32 val3){	int ret = -ENOSYS, cmd = op & FUTEX_CMD_MASK;	unsigned int flags = 0;	if (!(op & FUTEX_PRIVATE_FLAG))		flags |= FLAGS_SHARED;	if (op & FUTEX_CLOCK_REALTIME) {		flags |= FLAGS_CLOCKRT;		if (cmd != FUTEX_WAIT_BITSET && cmd != FUTEX_WAIT_REQUEUE_PI)			return -ENOSYS;	}	switch (cmd) {	case FUTEX_WAIT:		val3 = FUTEX_BITSET_MATCH_ANY;	case FUTEX_WAIT_BITSET:		ret = futex_wait(uaddr, flags, val, timeout, val3);		break;	case FUTEX_WAKE:		val3 = FUTEX_BITSET_MATCH_ANY;	case FUTEX_WAKE_BITSET:		ret = futex_wake(uaddr, flags, val, val3);		break;	case FUTEX_REQUEUE:		ret = futex_requeue(uaddr, flags, uaddr2, val, val2, NULL, 0);		break;	case FUTEX_CMP_REQUEUE:		ret = futex_requeue(uaddr, flags, uaddr2, val, val2, &val3, 0);		break;	case FUTEX_WAKE_OP:		ret = futex_wake_op(uaddr, flags, uaddr2, val, val2, val3);		break;	case FUTEX_LOCK_PI:		if (futex_cmpxchg_enabled)			ret = futex_lock_pi(uaddr, flags, val, timeout, 0);		break;	case FUTEX_UNLOCK_PI:		if (futex_cmpxchg_enabled)			ret = futex_unlock_pi(uaddr, flags);		break;	case FUTEX_TRYLOCK_PI:		if (futex_cmpxchg_enabled)			ret = futex_lock_pi(uaddr, flags, 0, timeout, 1);		break;	case FUTEX_WAIT_REQUEUE_PI:		val3 = FUTEX_BITSET_MATCH_ANY;		ret = futex_wait_requeue_pi(uaddr, flags, val, timeout, val3,					    uaddr2);		break;	case FUTEX_CMP_REQUEUE_PI:		ret = futex_requeue(uaddr, flags, uaddr2, val, val2, &val3, 1);		break;	default:		ret = -ENOSYS;	}	return ret;}

通过代码可以看到，系统调用会调用do_futex，而它又会通过op来产生cmd来确定具体的调用的FUTEX的形式。因为此处不是分析内核源码，所以点到为止。 三篇futex的文章，写得有些粗糙，但是如果跟踪库和内核仔细分析下去，估计还得写好多，这就不是分析futex的本意了。

三、总结

前面分析了futex的各种优点，它有什么缺点没？有，而且很坑，搞JAVA的如果搞得深的都遇到过这个问题：

还有这个： 还有一个是拒绝服务的漏洞，好像跟它也有关系，好东西，不可能啥都好，是不是？
